Product Description

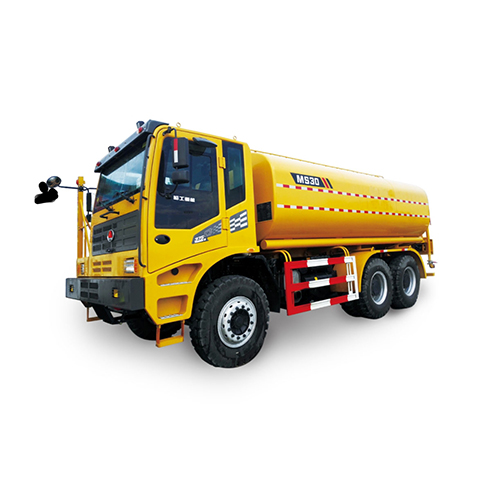

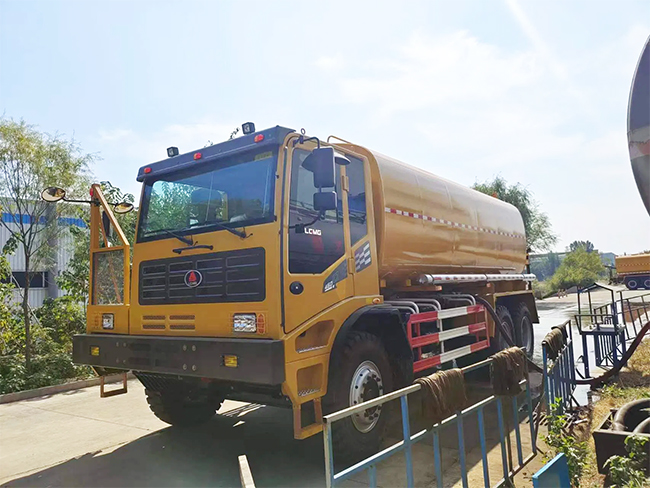

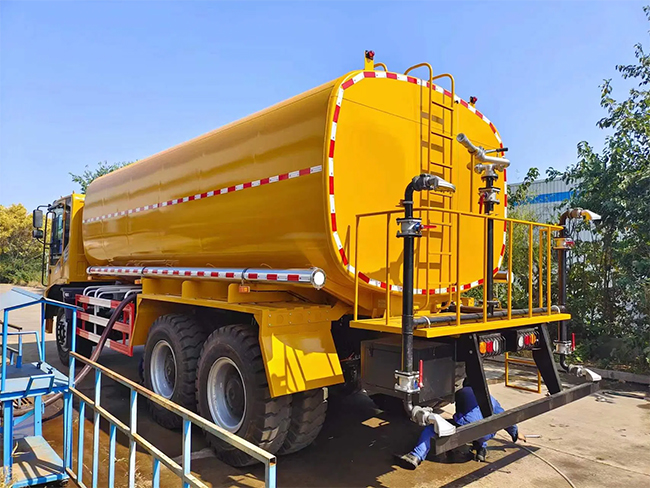

The MS series mining sprinkler truck for mining trucks has a larger water tank volume, which can achieve a larger spraying distance and improve operation.
01
It is specially designed for the mining area, is equipped with the mature mining dump truck chassis technology, and can quickly pass through the mining area.
02
The accessories are the same with mining truck and are easy to maintain.
03
It is combined with the lower pumping and upper filling functions.
Specification
| Model | MS25 | MS40/50 |
| Curb Weight | 16500kg | 28700kg |
| Total Weight | 41500kg | 78700kg |
| Overall Dimension | 9870×2560×3670mm | 12600×3600×4250mm |
| Engine Model | WP10.340E32 | WP12G460E310 |
| Engine Power | 340HP | 460HP |
| Gearbox | 9JSD150A | 7DS200 |
| Axle Load | 9.5+16+16t | 20+35+35t |
| Tire | 12.00R20 | 14.00-25/14.00R25 |
| Container Volume | 25m³ | 40/50m³ |
| Sprinkler Type | Front water canon,Rear sprinkler | Front water canon,Rear sprinkler |
| Water Pump Flow | 60m³/h | 60m³/h |
| Max. Speed Unladen/Laden | 50/50 km/h | 45/45 km/h |
| Max. Gradeabiblity | 32% | 30% |
| Min. Turning Diameter | 22m | 22m |
| Min. Ground Clearance | 293mm | 310mm |
