Product Description

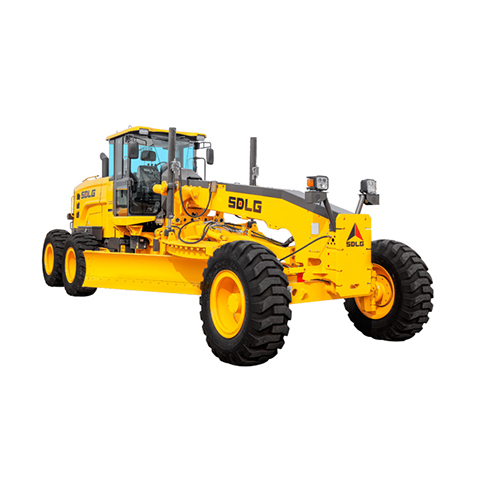

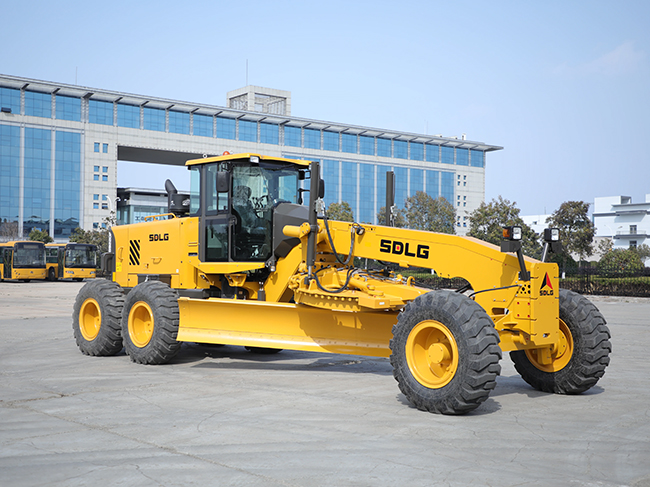

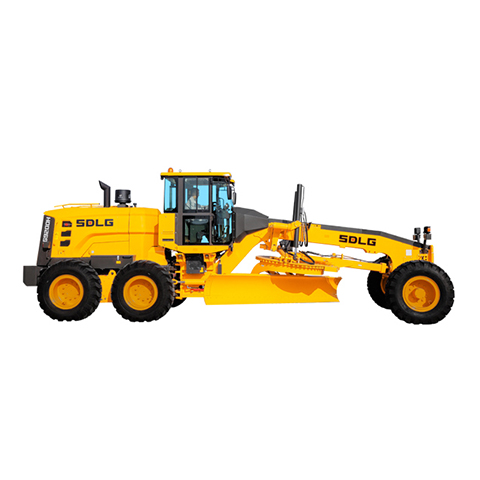

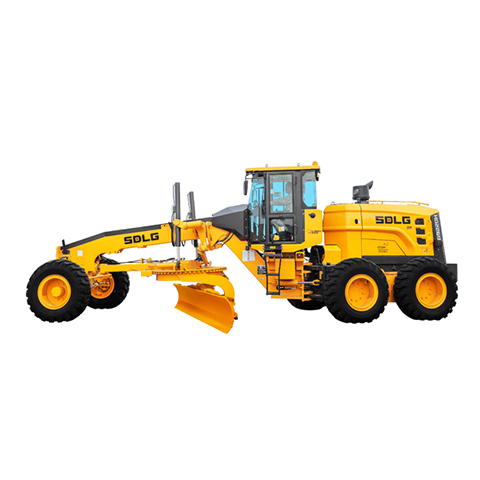

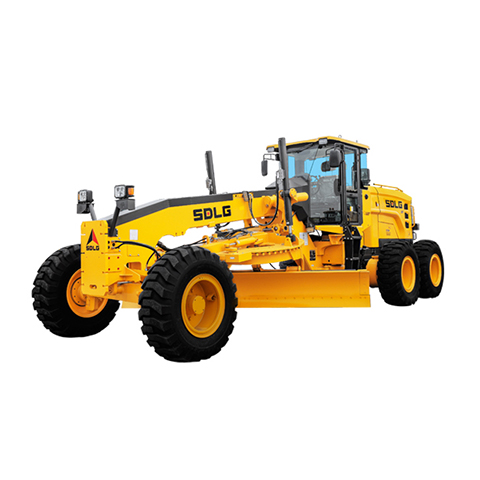

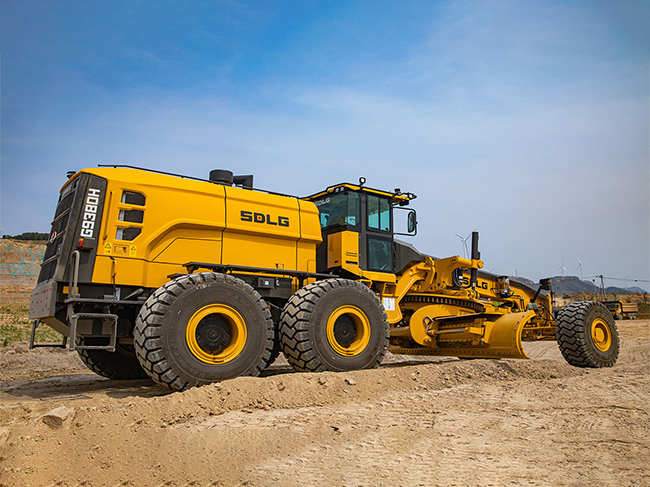

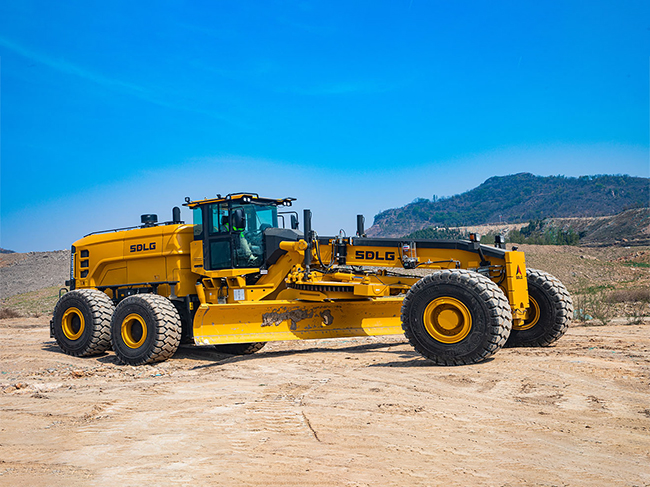

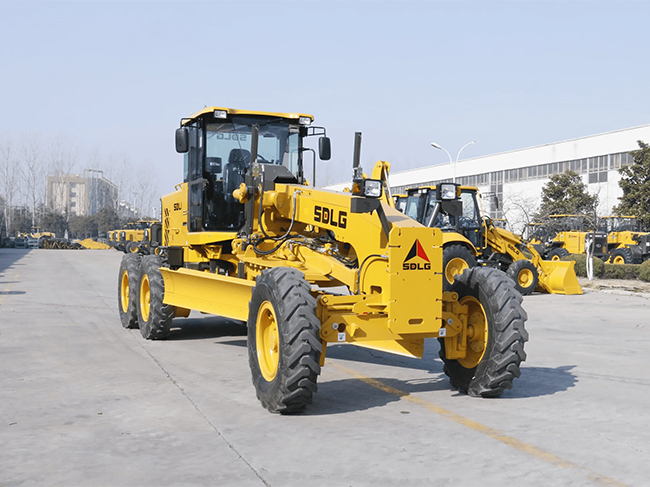

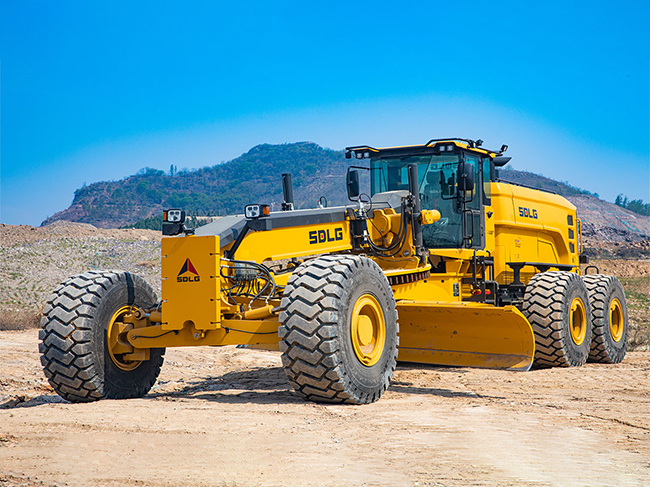

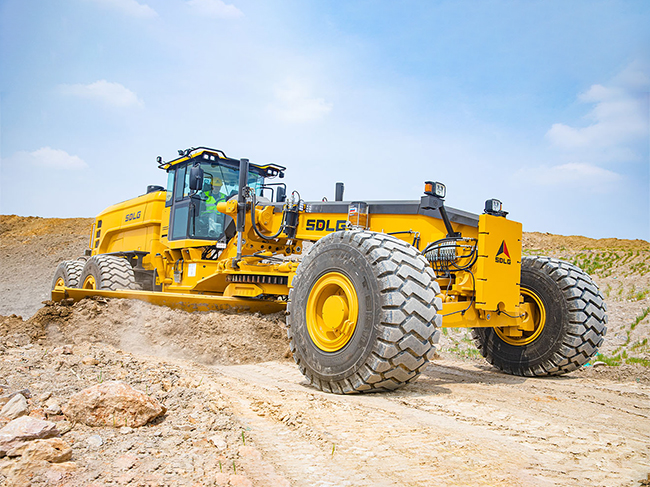

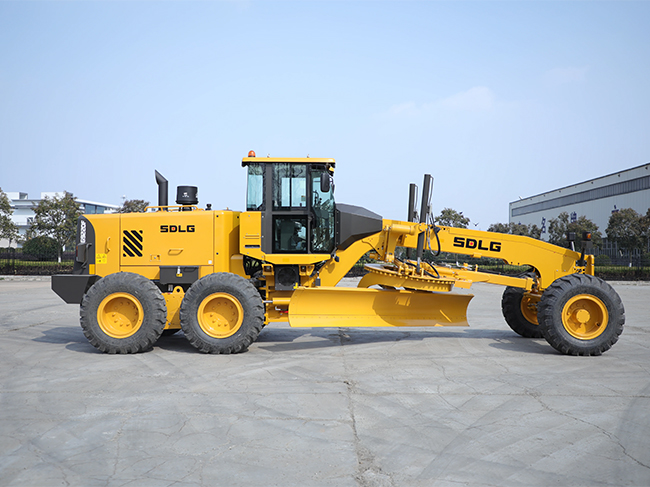

The SDLG motor grader is a high-speed, efficient, high-precision, and versatile product. It primarily performs surface leveling, trenching, slope scraping, bulldozing, snow removal, loosening, and mixing operations. It is widely used in highway, airport, defense, mining, road construction, water conservancy projects, and farmland improvement.
01
The cab is positioned forward of the front frame, providing excellent visibility, easy maneuverability, and enhanced precision.
02
The dual-cylinder drive allows the blade to swing under load, resulting in high efficiency.
03
The external gear mechanism eliminates soil accumulation and ensures high precision.
04
The cruise control system offers easy control and reduces operator fatigue.
Specification

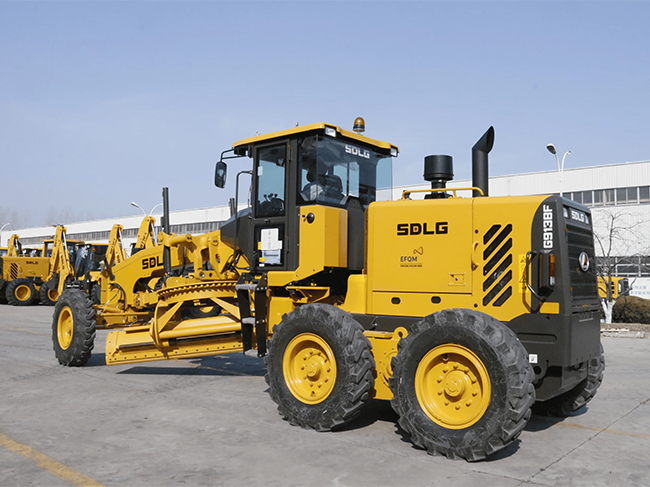

| Model | G9138F | G9165F | G9190F |
| Overall Dimension(L×W×H)(mm) | 8120×2471×3235 | 8975×2500×3240 | 8975×2500×3240 |
| Operating Weight(kg) | 12354 | 13850 | 16000 |
| Engine | Weichai | Weichai | Daichai |
| Engine Power(kW) | 105 | 129 | 146 |
| Emission Standard | China phase II | China phase II | China phase II |
| Blade Size(ft×in) | 10×22 | 12×22 | 13×22 |
| Model | G9220F | G9240F | G9290 |
| Overall Dimension(L×W×H)(mm) | 9235×2710×3240 | 9800×2710×3240 | 10170×2910×3390 |
| Operating Weight(kg) | 16500 | 18000 | 18000 |
| Engine | Daichai | Daichai | SDLG |
| Engine Power(kW) | 165 | 179 | 211 |
| Emission Standard | China phase II | China phase III | China phase III |
| Blade Size(ft×in) | 14×22 | 13×22 | 14×27 |
