Product Description

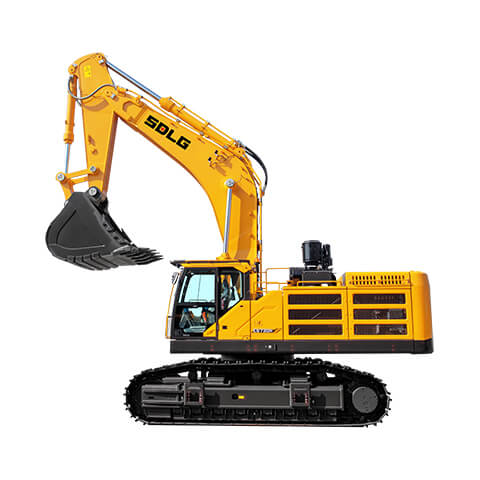

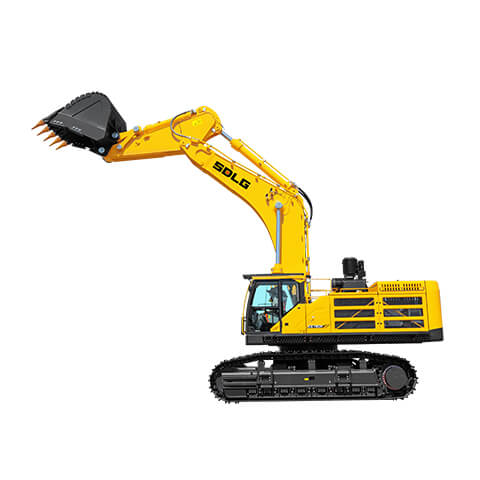

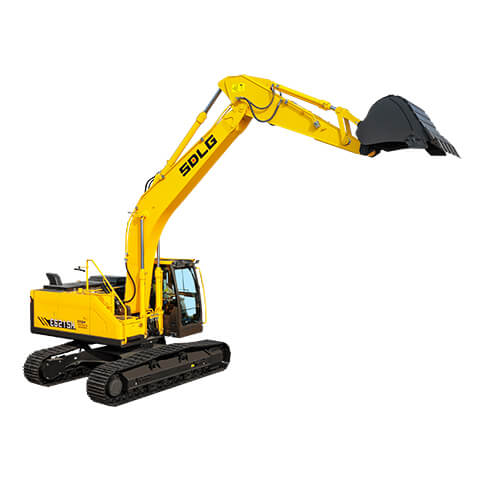

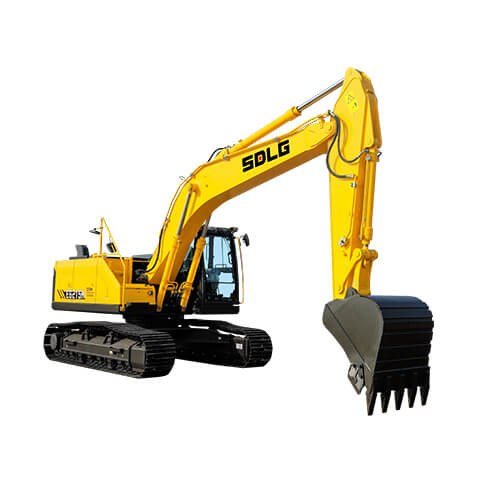

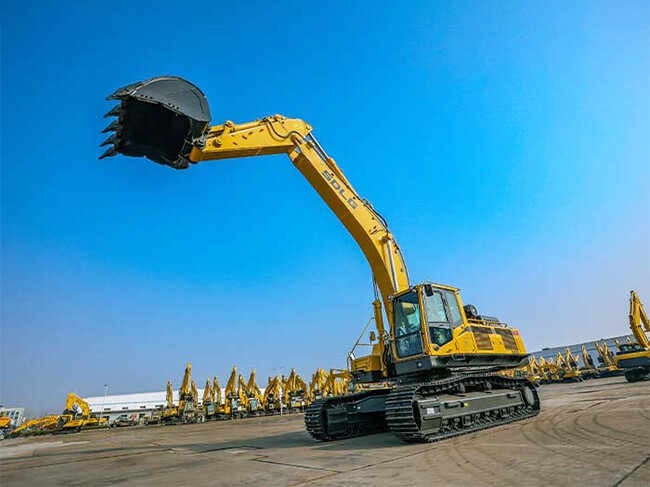

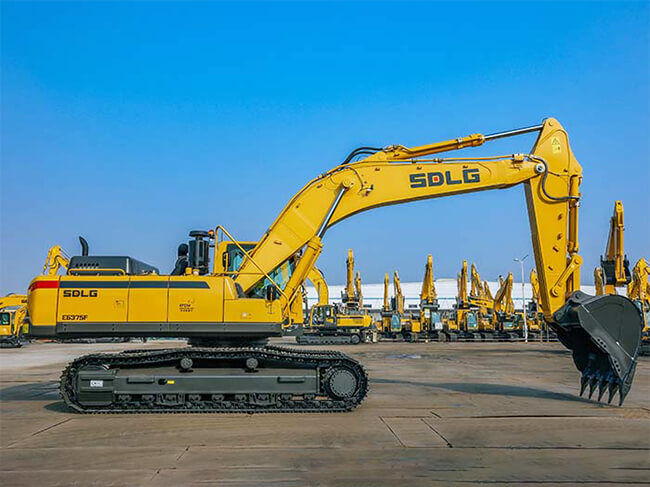

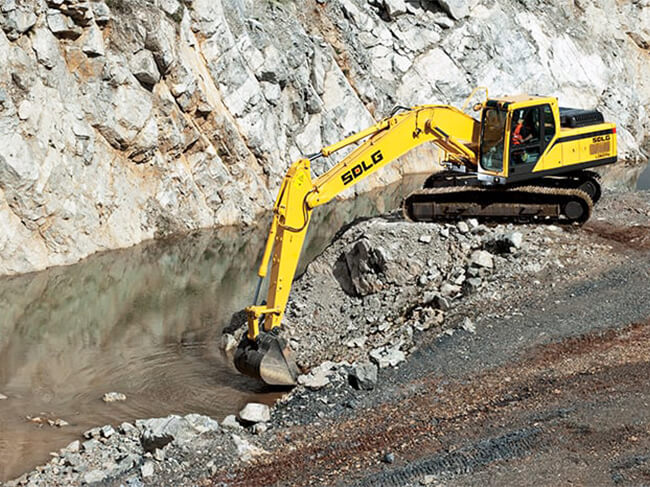

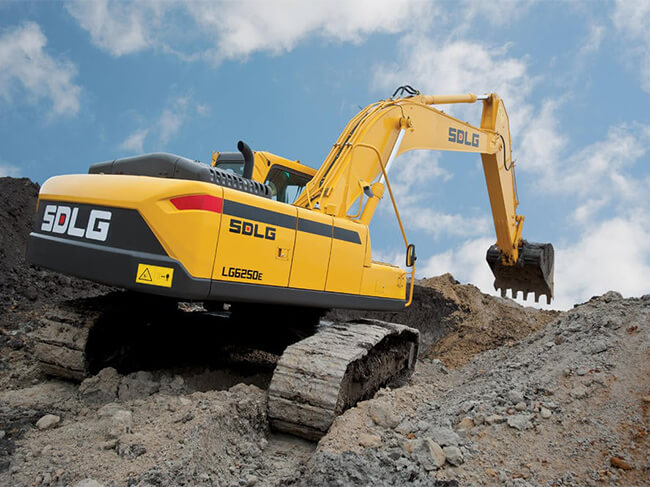

The H-Series excavator is a heavy-duty machine equipped with a telescopic boom and bucket, designed for digging and transporting large quantities of earth, sand, and gravel.
01
Strong fuel adaptability and an efficient hydraulic system deliver high productivity.
02
The high-strength chassis and solid structural components ensure stable operation.
03
A large-displacement swing motor delivers powerful torque.
04
The comfortable cab offers excellent visibility, a mechanically suspended seat, flexible controls, and centrally located filters.
Specification
| Model | E6135H | E6150H | E6210H | E6215H |
| Overall Dimension (L×W×H)(mm) | 7750×2490×2830 | 7770×2520×3190 | 9720×2800×2940 | 9720×2990×2940 |
| Operating Weight (kg) | 12800 | 16650 | 21000 | 21900 |
| Engine | FAW | FAW | FAW | FAW |
| Engine Power (kW) | 80 | 116 | 127 | 127 |
| Emission Standard | China phase II | China phase II | China phase II | China phase II |
| Bucket Capacity (m³) | 0.55 | 0.6 | 1 | 1.1 |
| Model | E6335H | E6350H | E6650H | E6690H |
| Overall Dimension (L×W×H)(mm) | 11000×3190×3450 | 11000×3190×3600 | 12280×3650×3990 | 12390×4190×4230 |
| Operating Weight (kg) | 34800 | 35200 | 63000 | 68000 |
| Engine | FAW | FAW | FENTA | CUMMINS |
| Engine Power (kW) | 215 | 215 | 345 | 563 |
| Emission Standard | China phase II | China phase II | China phase III | China phase III |
| Bucket Capacity (m³) | 1.6~2.0 | 1.6~2.0 | 4.2 | 4.5 |
| Model | E6730H | E6780H | E6870H | E6920H |
| Overall Dimension (L×W×H)(mm) | 12830×4490×4685 | 12915×4490×5100 | 12950×4490×5120 | 13770×4490×5260 |
| Operating Weight (kg) | 73000 | 79000 | 84000 | 91000 |
| Engine | CUMMINS | CUMMINS | CUMMINS | CUMMINS |
| Engine Power (kW) | 563 | 563 | 563 | 563 |
| Emission Standard | China phase III | China phase III | China phase III | China phase III |
| Bucket Capacity (m³) | 4.5~5.2 | 4.8~5.6 | 4.8~6 | 6 |
