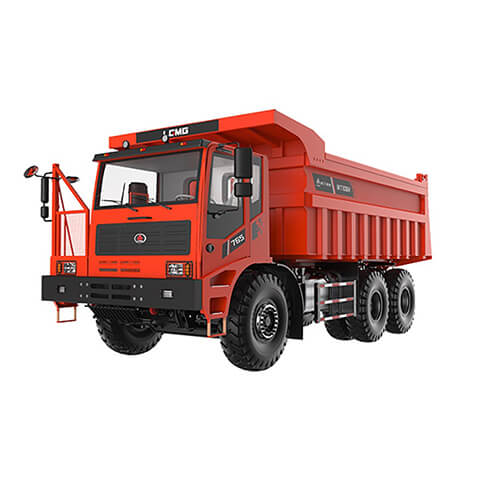

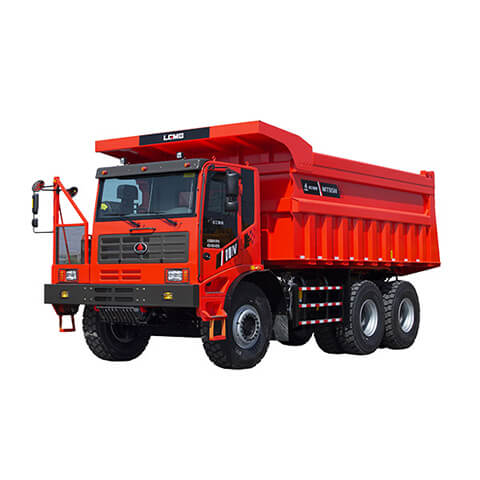

Product Description
Through the perfect combination of wide body car and rigid mine car, a cost-effective mine car designed for carrying large-scale open pit mines with heavy demand and bad working conditions.
01
Efficient, reliable, economic, safe, comfortable, SMART.
02
The front and rear suspension adopt multi-stage shock absorption, which effectively prolongs the service life of the leaf spring and has strong impact resistance.
03
Full hydraulic steering, better comfort than mechanical steering.
04
Adopt all-wheel dry-type caliper brake, cylinder and exhaust assist brake, improving the safety of the whole machine.
Specification
| Model | CMT66A | CMT66 | CMT96 | CMT106 |
| Loading Capicity | 40000（kg） | 50000（kg） | 65000（kg） | 70000（kg） |
| Curb Weight | 26000（kg） | 28500（kg） | 34800（kg） | 35280（kg） |
| Total Weight | 66000（kg） | 78500（kg） | 99800（kg） | 105280（kg） |
| Overall Dimension（LxWxH ） | 9160×3730×4200（mm） | 9160×3730×4200（mm） | 9600×3830×4300（mm） | 9770×3670×4290（mm） |
| Engine Model | WP12G460E310 | WP12G460E310 | WP13G530E310 | WP13G530E310 |
| Engine Power | 460（hp） | 460（hp） | 530（hp） | 530（hp） |
| Gearbox | FC6A210 | FC6A210 | FC6A250 | FC6A250 ALLISON 4800 |
| Axle Load | 18T+25T+25T | 18T+25T+25T | 25T+25T+35T | 25T+40T+40T |
| Tyre | F:23.5R25; R:750/65R25 | 14.00-25/14.00R25 | 16.00-25/16.00R25 | 16.00-25/16.00R25 |
| Standard Container Volume Struck/Heaped | 21/25（m³） | 23.5/28.5（m³） | 33.5/40（m³） | 35.5/42（m³） |
| Max. Speed Unladen/Laden | 61/42（km/h） | 44/44（km/h） | 48/44（km/h） | 50/50（km/h） |
| Max. Gradeability | 60% | 30% | 35% | 35% |
| Min. Turning Diameter | 22（m） | 24（m） | 24（m） | 24（m） |
| Min. Ground Clearance | 500（mm） | 340（mm） | 370（mm） | 370（mm） |
