Product Description

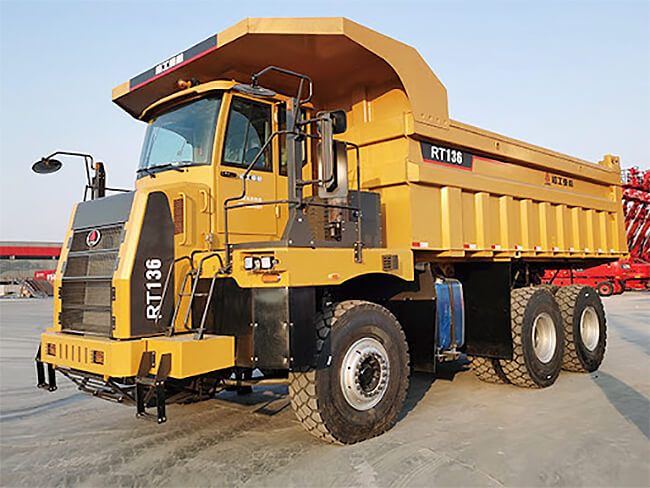

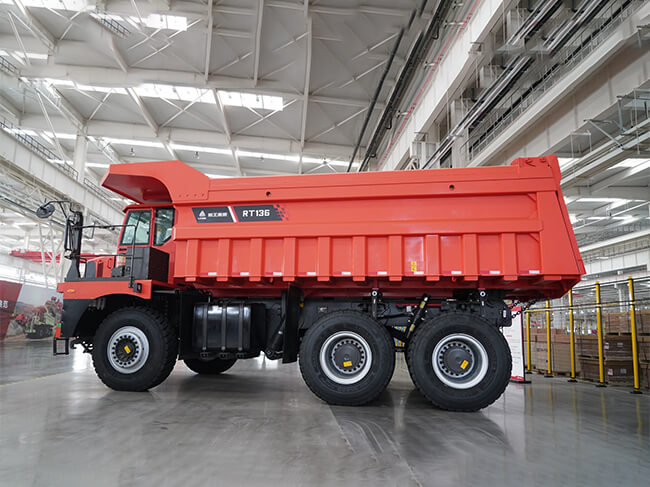

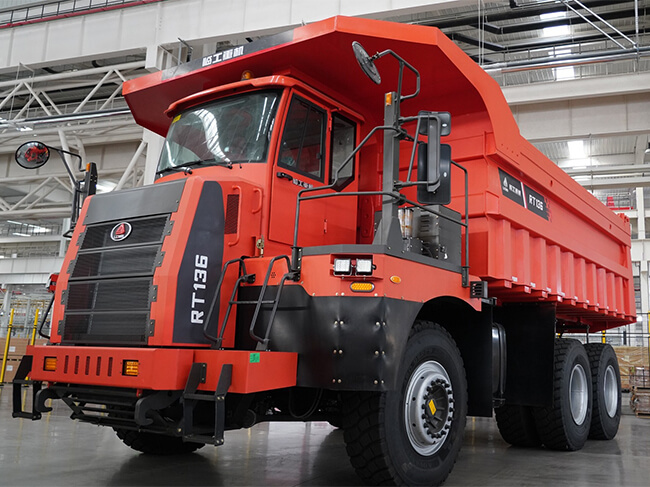

TThe RT136 is a large-tonnage mining truck with high hauling capacity and economical operation, helping mine construction achieve high productivity.
01
ts rigid welded frame and high safety factor design create a dedicated platform for large-tonnage mining trucks.
02
Its hydro-pneumatic suspension, featuring large-bore, long-stroke hydro-pneumatic springs, provides both unladen comfort and fully loaded reliability.
03
Its 3E+Plus intelligent algorithm-powered energy management system delivers ultimate efficiency.
04
Its large width-to-height ratio, anti-roll center-mounted cab, and hydraulic dual-cylinder center lift ensure safety and reliability throughout the construction process.
Specification
| Model | RT136 |
| Loading Capicity | 90000（kg） |
| Curb Weight | 46000（kg） |
| Total Weight | 136000（kg） |
| Overall Dimension（LxWxH ） | 10500×4480×4300（mm） |
| Engine Model | WP17TG770E304 |
| Engine Power | 770（hp） |
| Gearbox | 8DS330/ALLISON 6620 |
| Axle Load | 30T+55T+55T |
| Suspension Front | Hydro-pneumatic suspension |
| Suspension Rear | Hydro-pneumatic suspension |
| Tire | 18.00R25/480/95R29 |
| Standard Container Volume Struck/Heaped | 50/58.5（m³） |
| Max. Speed Unladen/Laden | 46/46（km/h） |
| Max. Gradeability | 34% |
| Min. Turning Diameter | 25（m） |
| Min. Ground Clearance | 460（mm） |
