Product Description

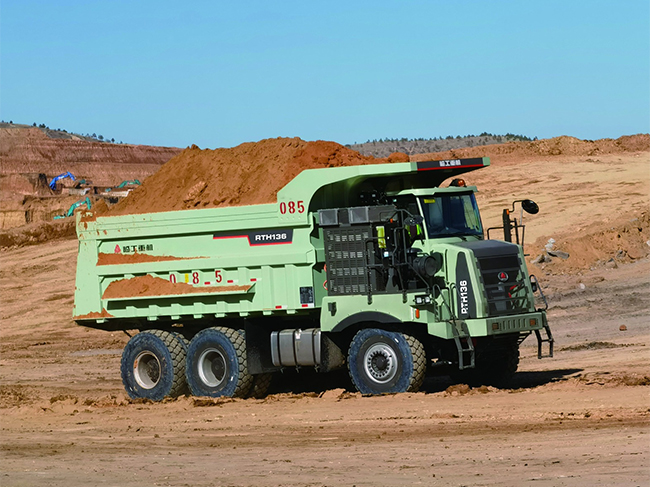

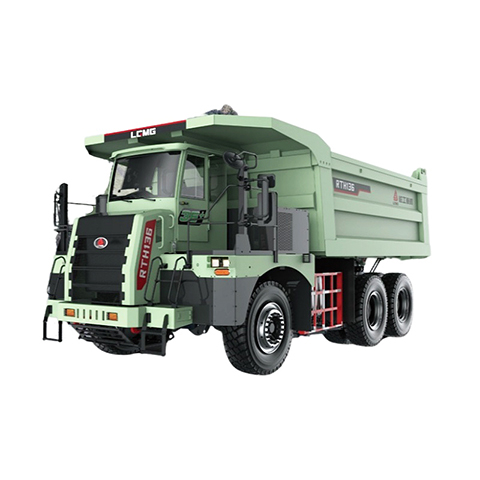

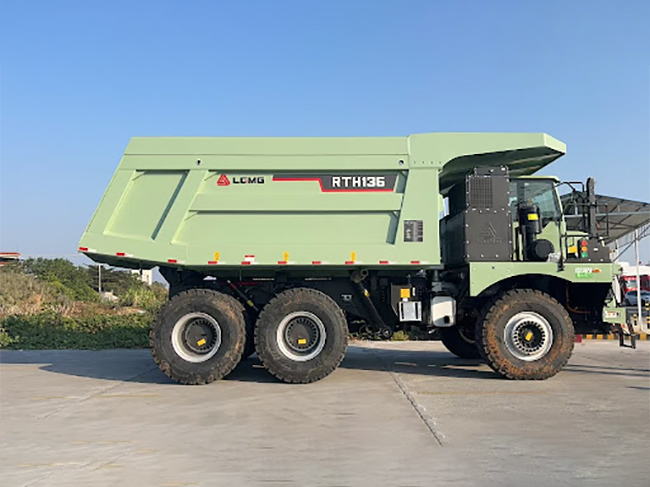

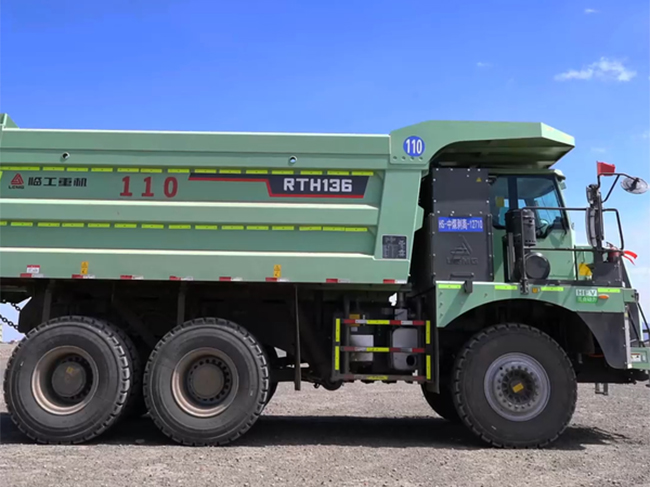

The RTH136 is a large-tonnage hybrid mining truck with high transport capacity and high economic efficiency, helping mine construction achieve high productivity.
01
The RTH136 features an advanced hybrid system architecture. It automatically switches between four modes: pure electric, hybrid, recuperation, and extended range, delivering high efficiency and fuel economy.
02
The vehicle's hydro-pneumatic suspension and large-bore, long-stroke hydro-pneumatic springs combine unladen comfort with full-load reliability.
03
The 3E+Plus intelligent algorithm-powered energy management system ensures ultimate efficiency, ensuring the full collection of all required and available resources.
04
The vehicle's large width-to-height ratio, anti-roll center-mounted cab, and hydraulic dual-cylinder center lift ensure safe and reliable operation throughout the construction process.
Specification
| Model | RTH136 |
| Loading Capicity | 90000（kg） |
| Curb Weight | 48000（kg） |
| Total Weight | 138000（kg） |
| Overall Dimension（LxWxH ） | 10400×4480×4400（mm） |
| Engine Model | YCK16775-T300 |
| Engine Power | 775（hp） |
| Gearbox | ZD F33S4800E |
| Axle Load | 30T+55T+55T |
| Suspension Front | Hydro-pneumatic suspension |
| Suspension Rear | Hydro-pneumatic suspension |
| Tire | 18.00R25/480/95R29 |
| Standard Container Volume Struck/Heaped | 50/58.5（m³） |
| Max. Speed Unladen/Laden | 45/45（km/h） |
| Max. Gradeability | 30% |
| Min. Turning Diameter | 25（m） |
| Min. Ground Clearance | 470（mm） |
