Product Description

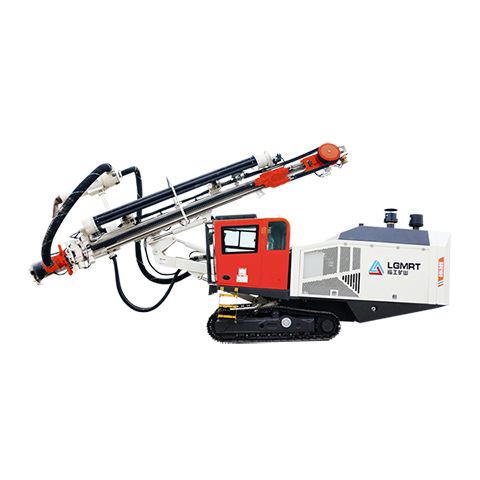

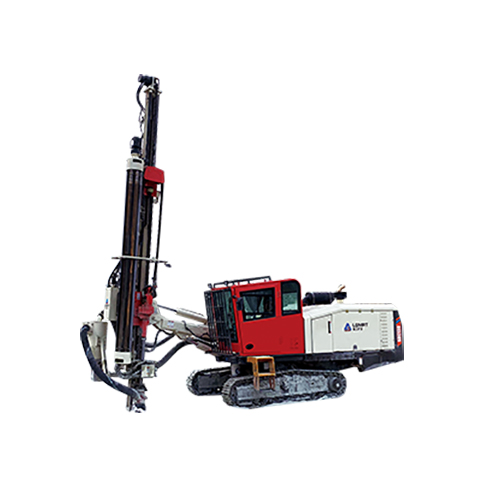

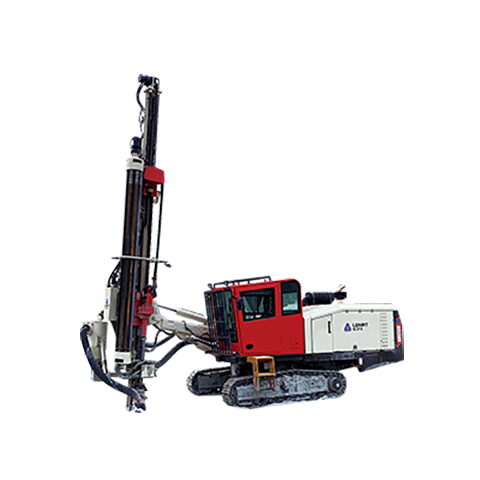

SDC is a diesel powered, self-contained crawler mounted drilling rig, the design and the lay-out originated from Sandvik classic design. The drill rig is equipped with air compressor on board, an operator' s cabin, drill pipe changer and dust collector.
Specific for DTH blasthole drilling in the mining, quarry and construction industries, the drilling hole diameter is wide and can be applied to various complex applications.
Unsparing in drilled meters
Using mature SANDVIK drilling technology, DG130 provides excellent equipment performance, drilling quality, stability, and high operating efficiency.
Scrooge in fuel consumption
Using SANDVIK' s patented CMS air compressor management system, keeping fuel consumption, carbon emissions and operating costs as low as possible.
Seamless cooperation
Joystick control on both sides, easy to operate.
Safety and environmental protection
Higher safety standards, multiple safety protections, and an efficient two-stage dust removal system can effectively suppress dust in the drilling process, providing workers with a safer and more environmentally friendly operation and construction environment.
Specification
| Technical Specifications | SDC130 | SDC150 | SDC160 |
| Hole Diameter (mm) | 90-130 | 115-152 | 138-178 |
| Drill Pipe Diameter (mm) | 76 | 89/102 | 102/114 |
| DTH Hammer(’) | 3.5’/ 4’ | 4’/ 5’ | 5’/ 6’ |
| Air flow & pressure | 14m³/min@17bar | 18.5m³/min@22bar | 24.6m³/min@24bar |
| Engine Output(kW) | 194 | 264 | 335 |
| Dimensions（W×H×L）(mm) | 9650×2500×3445 | 9250×2550×3700 | |
| Weight（kg） | 14500 | 16500 | 24350 |
