Product Description

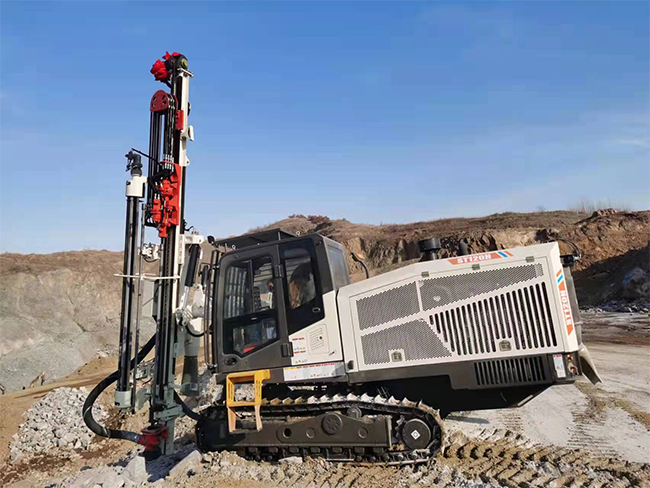

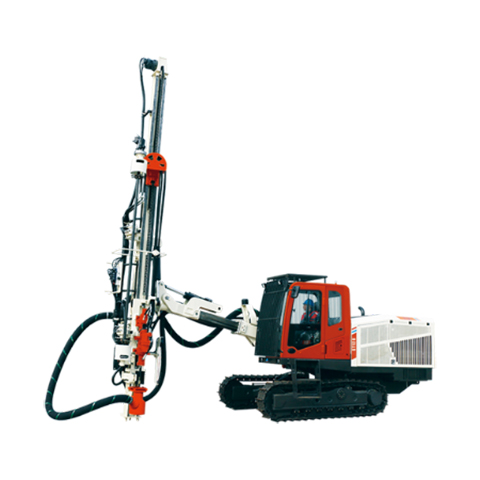

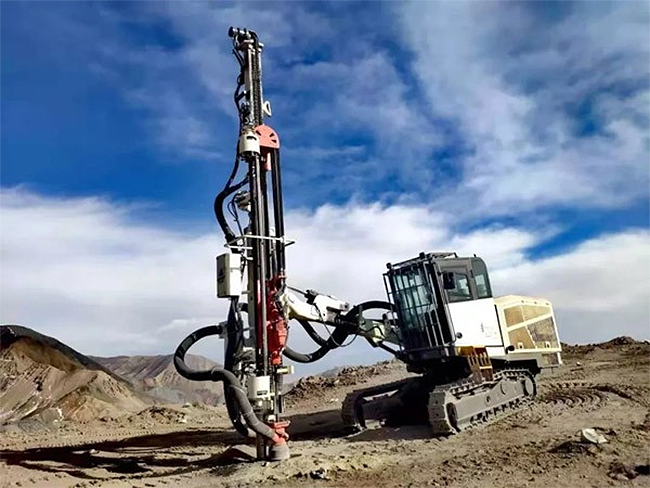

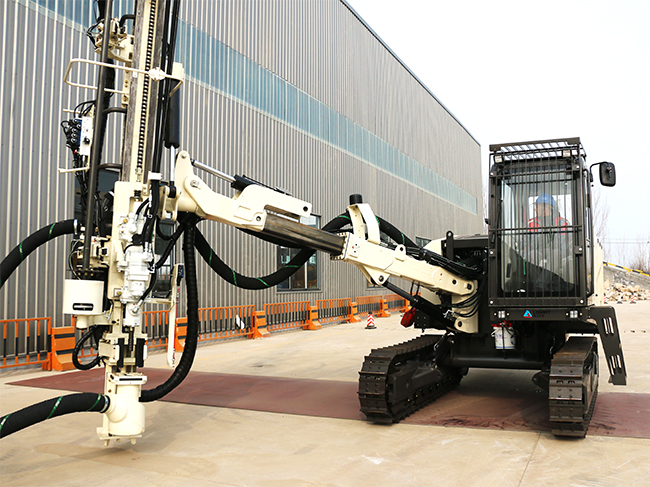

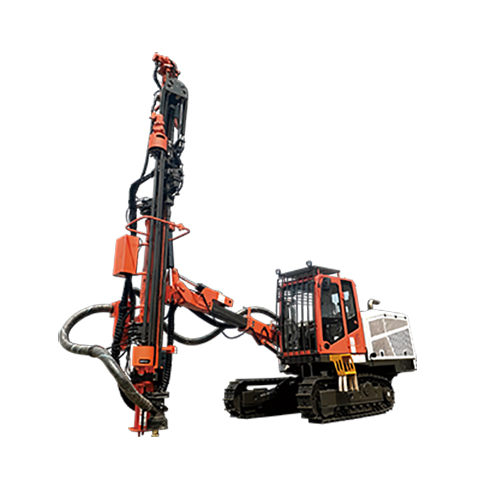

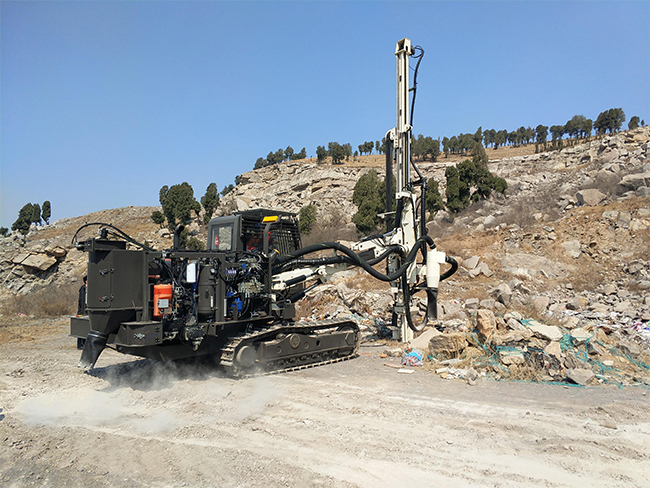

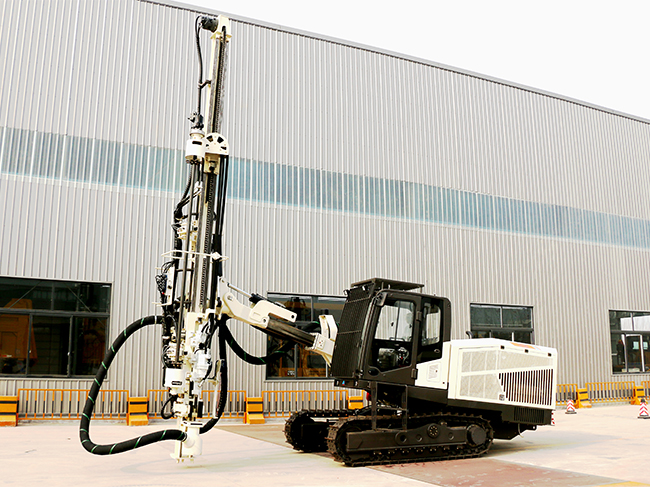

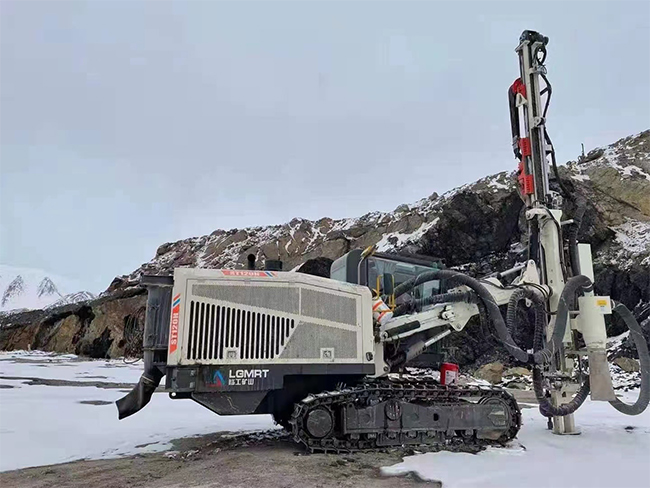

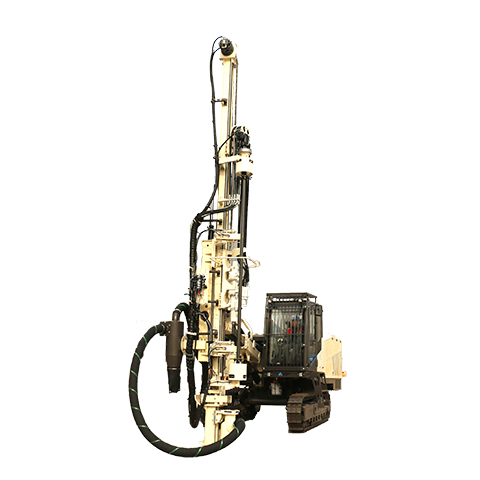

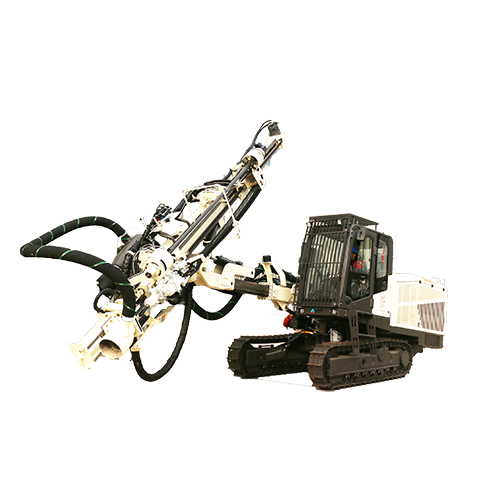

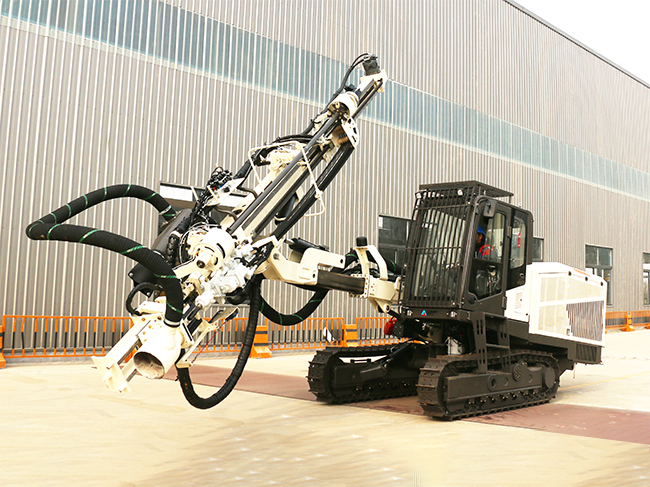

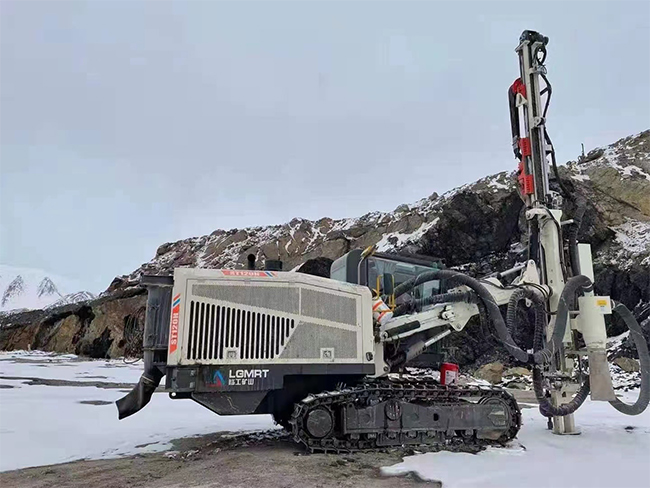

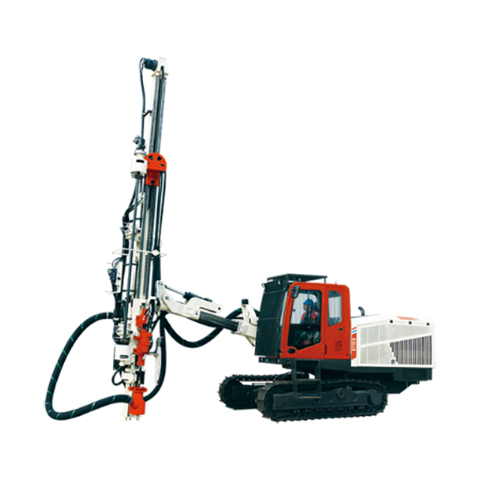

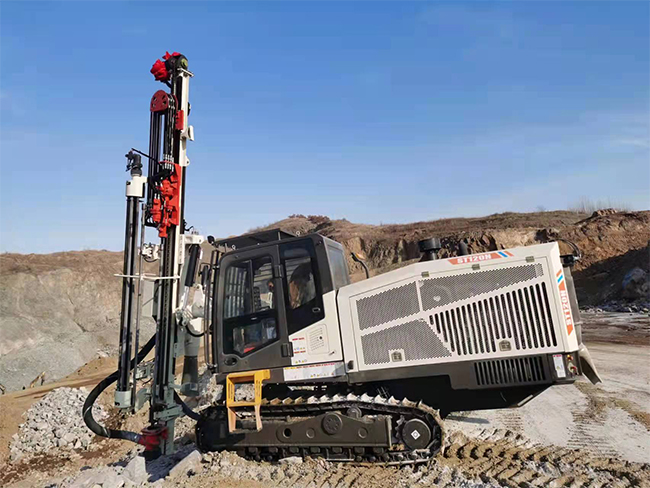

Originated from Sandvik classic drill rig frame structure and system, with telescopic boom and oscillation, ST120H surface top hammer drill rig can be widely used in various mining and construction applications.
High integrated efficiency
Sandvik Rock Drill to ensure efficient drilling.
Low operating cost
Advanced drilling control system ensures drilling quality. Load sensitive hydraulic system and air compressor management system greatly reduce fuel consumption.
Safety and environmental protection
Safety and environmental protection - the design concept of "SAFETY FIRST" and "ENVIRONMENTAL PROTECTION" ensures the construction of green mines.
Specification
| Technical Specifications | ST120H |
| Hole Diameter (mm) | 76-127 |
| Boom Type | Telescopic Boom |
| Rock Drill | LD120H |
| Rock Drill Output(kW) | 22 |
| Drilling Rod | T51 |
| Rod Length（mm） | 3660 |
| Engine Brand and Power（kW） | Cummins179kW@2200rpm |
| Air flow & pressure | 9.6m³/min@10bar |
| Dimension（W×H×L） | 2550×3700×11300 |
| Weight（kg） | 16500 |
