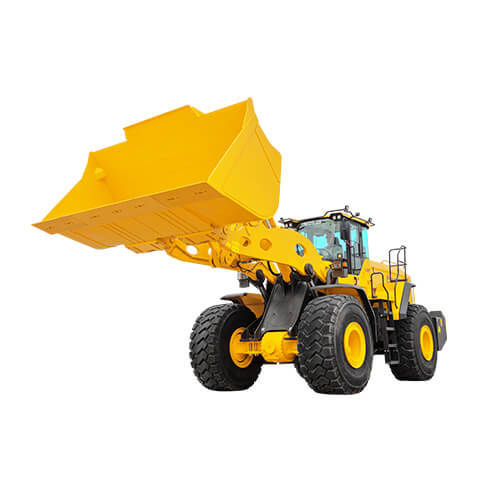

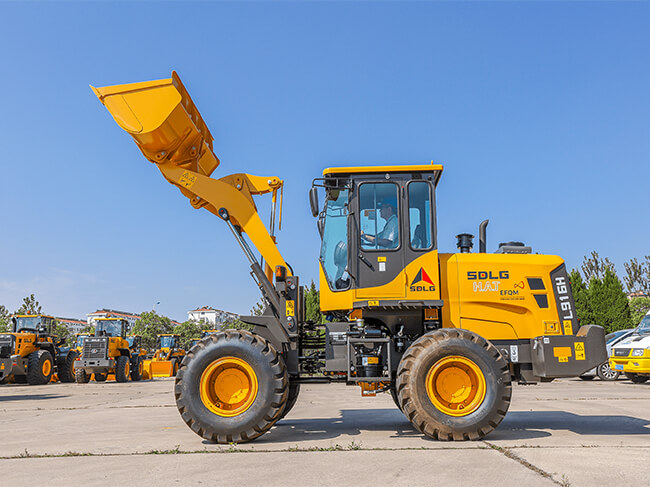

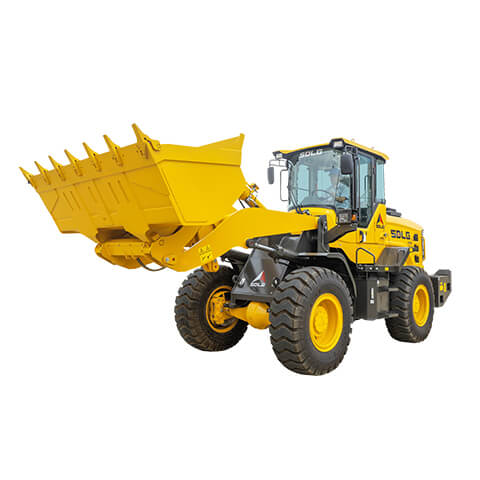

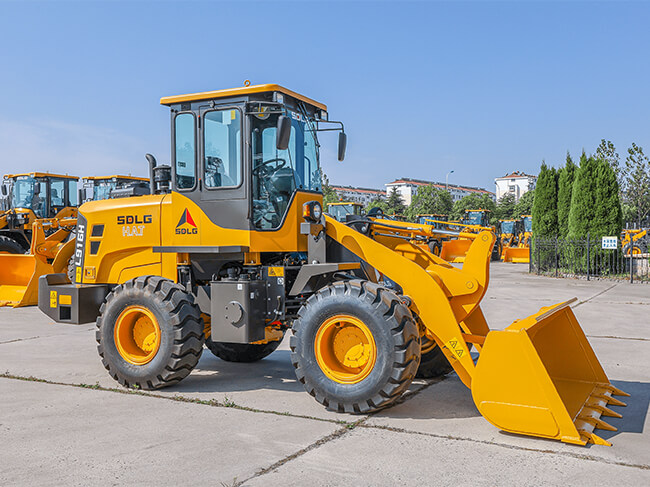

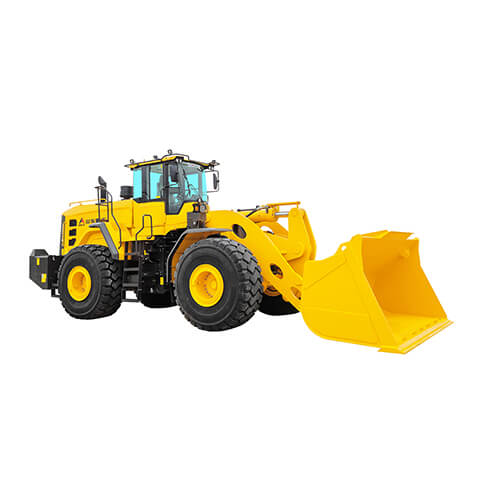

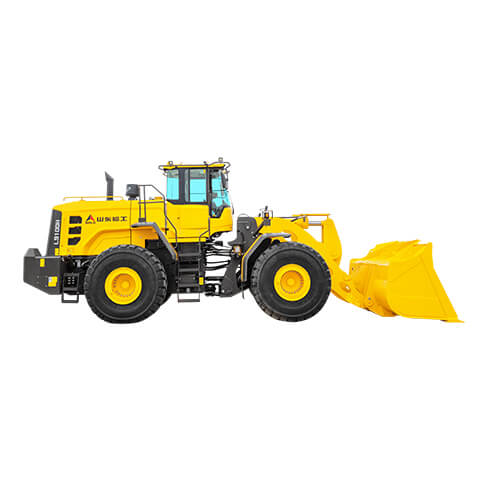

Product Description

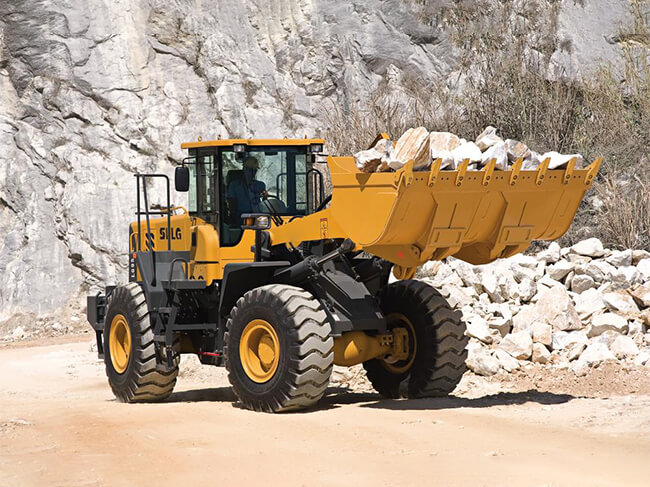

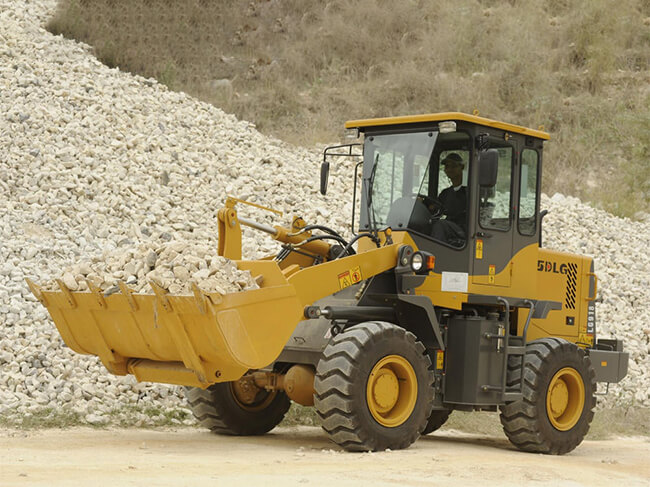

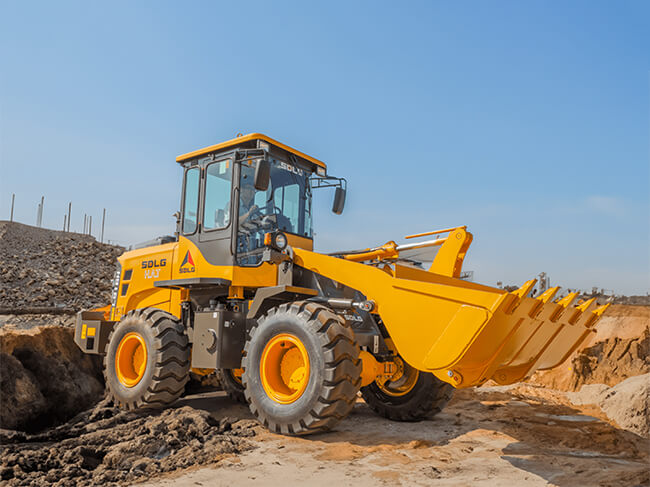

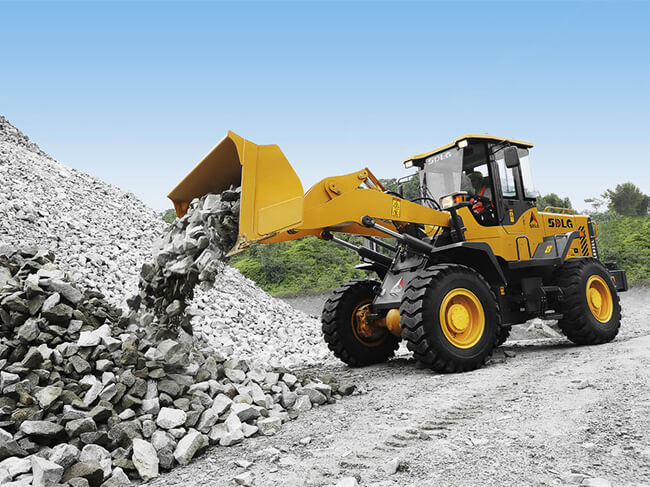

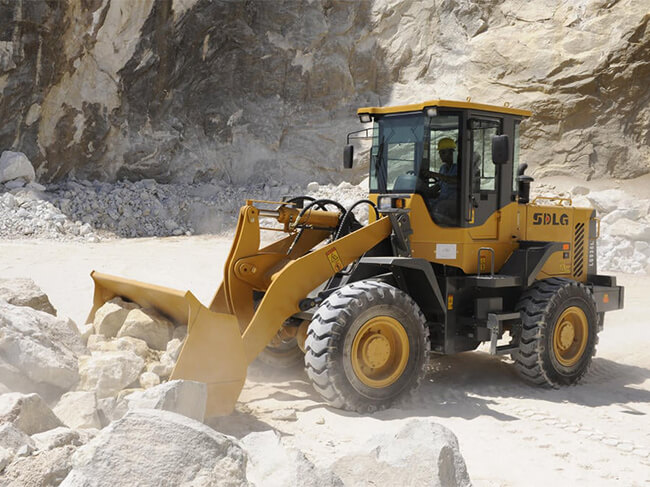

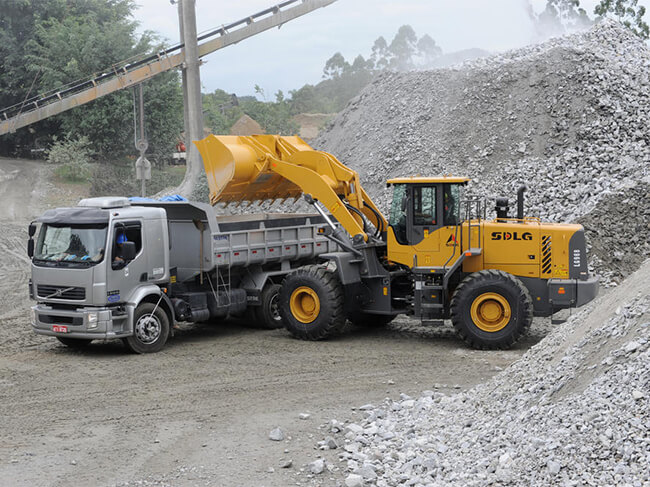

The H Series wheel loader features a large tonnage, long wheelbase, and high-performance configuration. Its excellent longitudinal stability and high tipping load make it suitable for large, heavy-duty applications. It is widely used in large ports, docks, coal mines, and steel enterprises.
01
It utilizes a variable displacement hydraulic system for high efficiency and energy conservation.
02
It is equipped with fully hydraulic brakes, offering high braking torque, sensitive braking, and safe and reliable operation.
03
The box-type front and rear frames provide strong load-bearing capacity and high reliability.
04
Lower noise levels inside and outside the cab ensure a more comfortable ride.
Specification
| Model | L916H | L916H | L918H | L935H | L936H |
| Overall Dimension (L×W×H)(mm) | 5765×2140 ×2925 | 7130×2140 ×3046 | 5790×2150 ×2920 | 7320×2520 ×3170 | 7320×2520 ×3170 |
| Wheelbase (mm) | 2253 | 2600 | 2260 | 2850 | 2850 |
| Operating Weight (kg) | 5250 | 6565 | 6490 | 10940 | 11230 |
| Engine | Yunnel | Quanchai | Yuchai | Wechai | Wechai |
| Engine Power (kW) | 61.8 | 76 | 58 | 105 | 105 |
| Emission Standard | China phase III | China phase II | China phase II | China phase II | China phase II |
| Bucket Capacity (m³) | 0.8~0.9 | 2 | 1.0~1.4 | 1.5~3.0 | 1.5~3.0 |
| Model | L946H | L953H | L956H | L956HE | L958H |
| Overall Dimension (L×W×H)(mm) | 7345×2766 ×3340 | 8000×3024 ×3423 | 8300×3024 ×3426 | 8250×3024 ×3466 | 8370×3024 ×3450 |
| Wheelbase (mm) | 2880 | 3000 | 3300 | 3300 | 3400 |
| Operating Weight (kg) | 13020 | 16900 | 17220 | 17080 | 17600 |
| Engine | Wechai | Wechai | Wechai | Wechai | Dachai |
| Engine Power (kW) | 129 | 162 | 162 | 162 | 170 |
| Emission Standard | China phase II | China phase II | China phase II | China phase II | China phase II |
| Bucket Capacity (m³) | 2.0~2.5 | 2.4~4.5 | 2.7~4.5 | 2.7~4.5 | 2.7~5.0 |
| Model | L968H | L975H | L989H | L9100H | |
| Overall Dimension (L×W×H)(mm) | 8870×3200 ×3510 | 9250×3490 ×3620 | 9400×3490 ×3725 | 10000×3640 ×3800 | |
| Wheelbase (mm) | 3500 | 3550 | 3550 | 3800 | |
| Operating Weight (kg) | 20650 | 25040 | 27500 | 34200 | |
| Engine | Wechai | Wechai | Wechai | Wechai | |
| Engine Power (kW) | 178 | 199 | 250 | 287 | |
| Emission Standard | China phase III | China phase III | China phase III | China phase III | |
| Bucket Capacity (m³) | 3.0~6.0 | 3.5~7.0 | 3.5~7.0 | 5.6~9.0 |
